| 1994 |
1995-1997 |

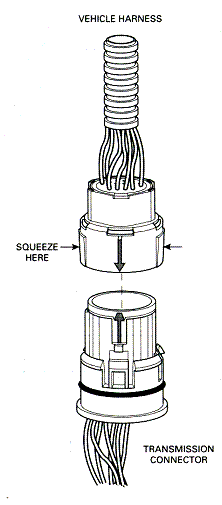

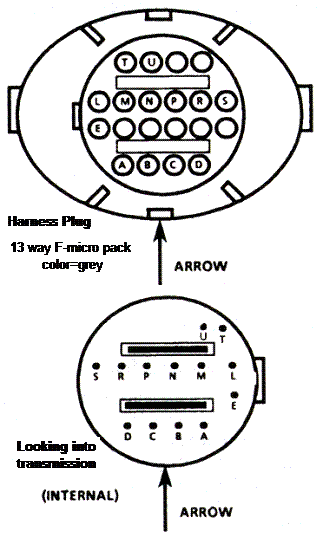

| Cavity |
Wire Color |
Description |
Description |
| A |
Lt Green |
| 1-2 Shift solenoid control |
|
1-2 Shift solenoid control |
| B |
Yel/Blk |
2-3 Shift solenoid
control |
2-3 Shift solenoid control |
| C |
Red/Black |
Pressure control
solenoid feed |
Pressure control solenoid feed |
| D |
Lt blue/white |
Pressure control
solenoid return |
Pressure control solenoid return |
| E |
Pink |
Power feed from
ignition fuse 11 |
Power feed from ignition fuse 11 |
| L |
Yel/Blk |
Transmission
temperature sensor signal |
Transmission temperature sensor signal |
| M |
Black |
Sensor return-PCM |
Sensor return-PCM |
| N |
Pink |
Transmission pressure
switch signal-Range A |
Transmission pressure switch
signal-Range A |
| P |
Red |
Transmission pressure
switch signal-Range C |
Transmission pressure switch
signal-Range C |
| R |
Dk Blue |
Transmission pressure
switch signal-Range B |
Transmission pressure switch
signal-Range B |
| S |
White |
3-2 Shift solenoid |
3-2 Shift solenoid |
| T |
Tan/Black |
Torque converter
clutch solenoid control |
Torque converter clutch solenoid
control |
| U |
Brown |
not used |
Torque converter clutch (TCC) pulse
width modulation (PWM) solenoid control |
|
|
|
|
|
|
|
